General Information
Brand
Greenlee
Part Number
DM-210A
Product Type
Digital Multimeter

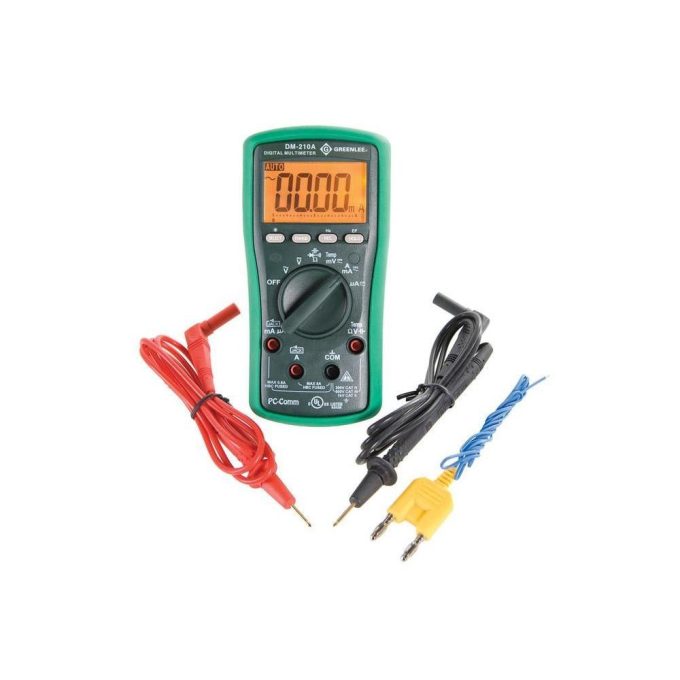

What’s Included
(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
Packaging
Retail
Country of Origin
Taiwan
UPC
783310087410
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.61 kg
1.35 lb
Details
Measurement Standard
CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
Features
Measures voltage, current, resistance and frequency
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes – non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual rangeselection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
Measures capacitance
Measures temperature using a type K thermocouple
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes – non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual rangeselection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
Measures capacitance
Measures temperature using a type K thermocouple
Amperage Measurement: 600, 6000 MICAMP, 60, 600 MILAMP, 6, 8 AMP
Measurement Category: CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Voltage
60, 600 MILV, 6, 60, 600, 1000 V
Capacitance
60, 600 NFD, 6, 60, 600, 3000MFD
Resistance (Ohms)
600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
Frequency
10 HZ – 50 KHZ Sine Wave, 5 HZ – 999.9 KHZ Logic Level Square Wave
Batteries
(2) 1.5 V AAA
Display Type
Backlit LCD With 6,000 Count
Temperature Range
K Type, -58 To 1832 DEG F (-50 To 1000 DEG C)
